Saving Your Model

To save your Threat Model, click the Save icon  on the toolbar.

You can save your model directly to Jira and Azure Boards by clicking the Summary icon  and selecting the Save to Jira or Save to Azure Boards button. Find further information here.

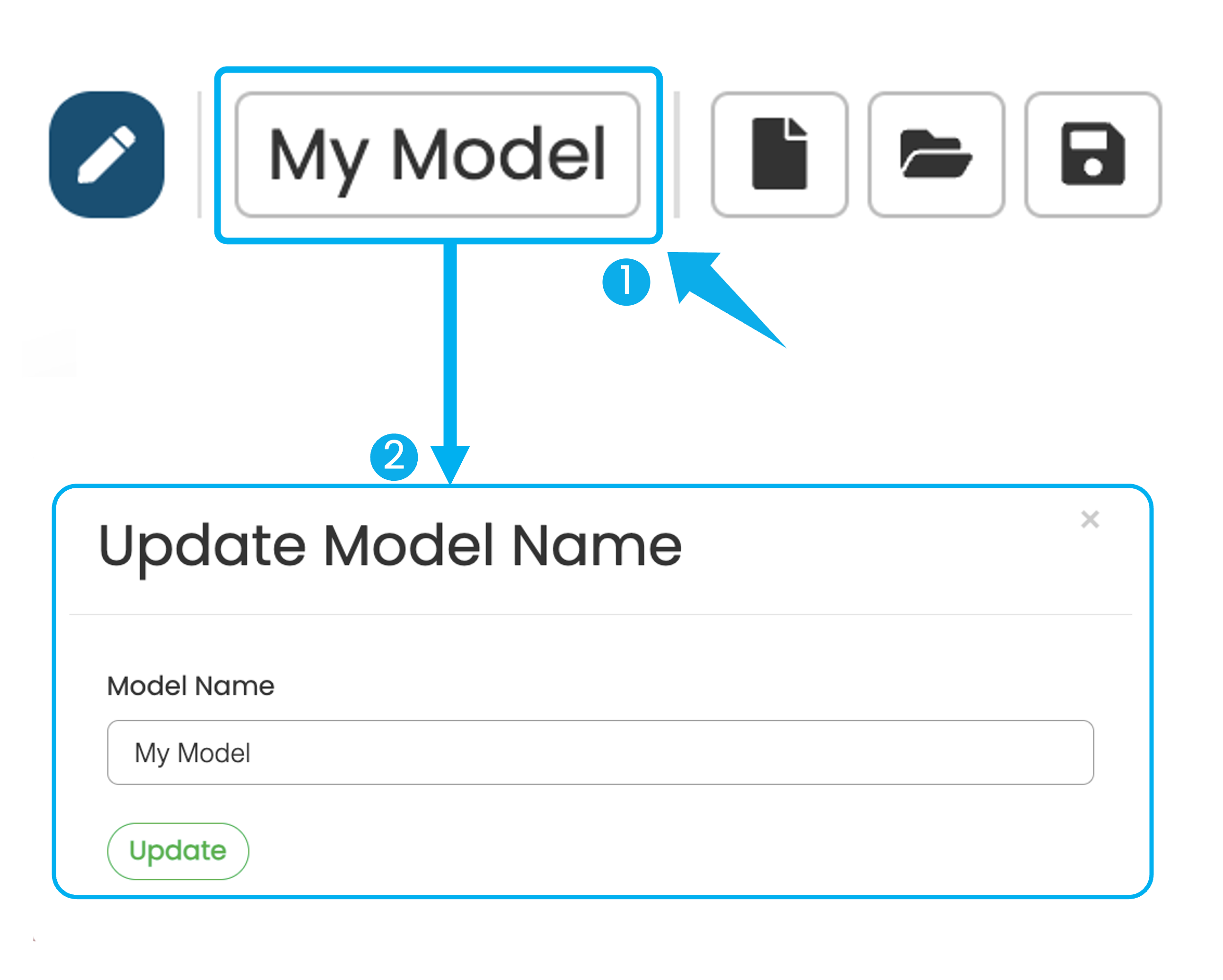

Update Your Model Name

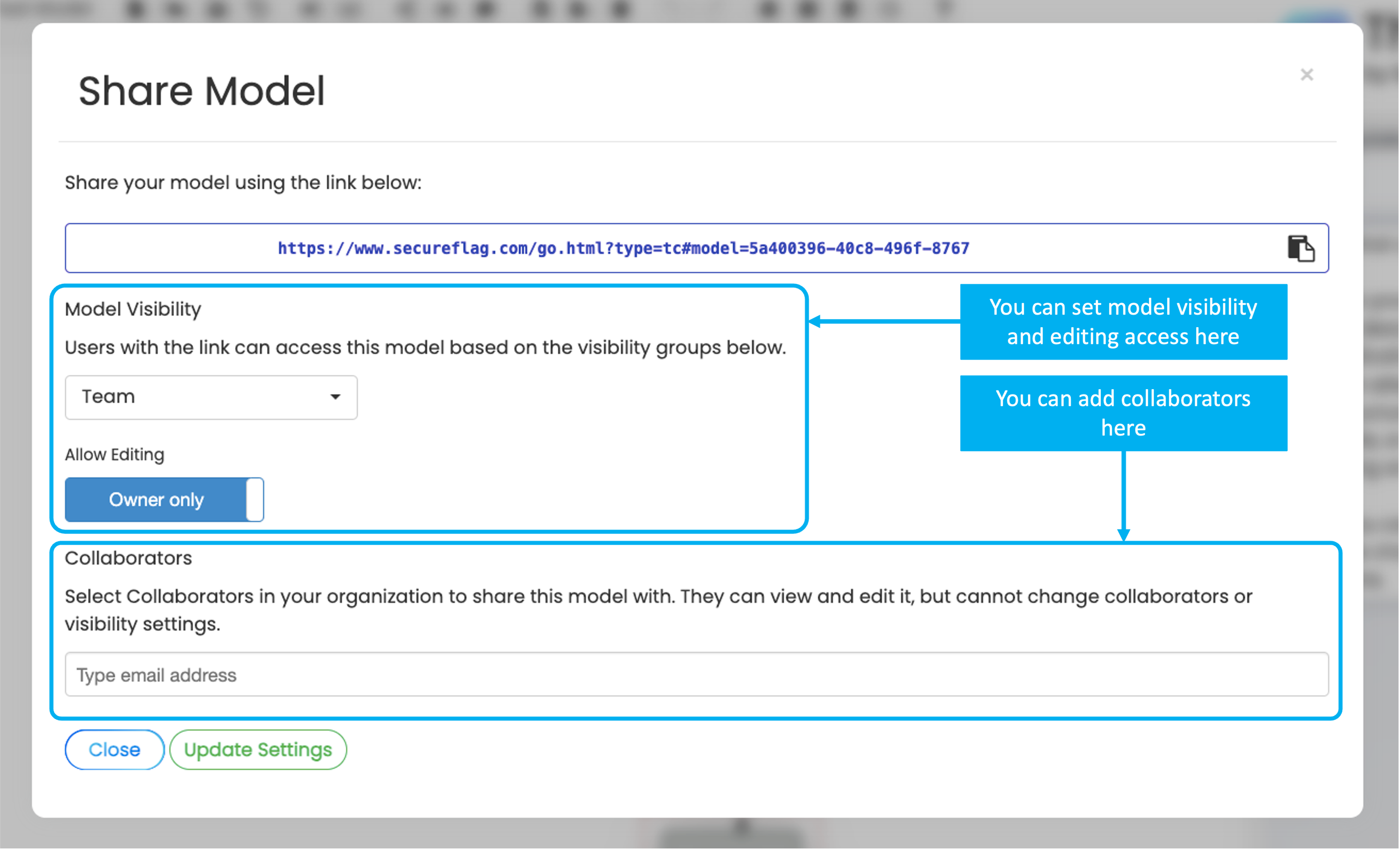

Sharing Your Model

To share a model, click the Share icon  on the toolbar. A model can be shared by a link which is scoped by the set visibility group.

Visibility Groups

1. Private: The model is accessible only to its owner. When this level is selected, it’s not possible to share a model by link.
2. Team: The model is accessible to members of your SecureFlag team.
3. Organization: The model is accessible to all users within your SecureFlag organization.


Collaborators

Note: Organization Admins and Team Managers have read and write access to all models created by users in their organizations and managed teams.

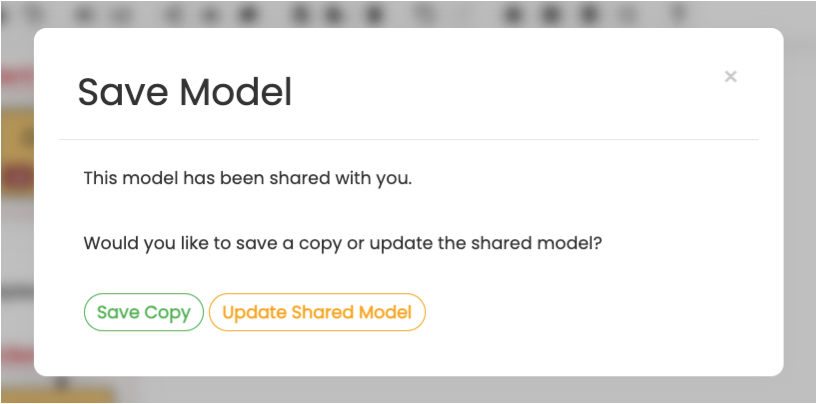

Save a Copy

If a model has been shared with you through a link and edits are not allowed by the owner, you can still save a personal copy of the model. Click the Save icon , then select Save Copy.

Note: The above modal window does not apply to Organization Admins and Team Managers. They will be able to save changes directly to the original model.

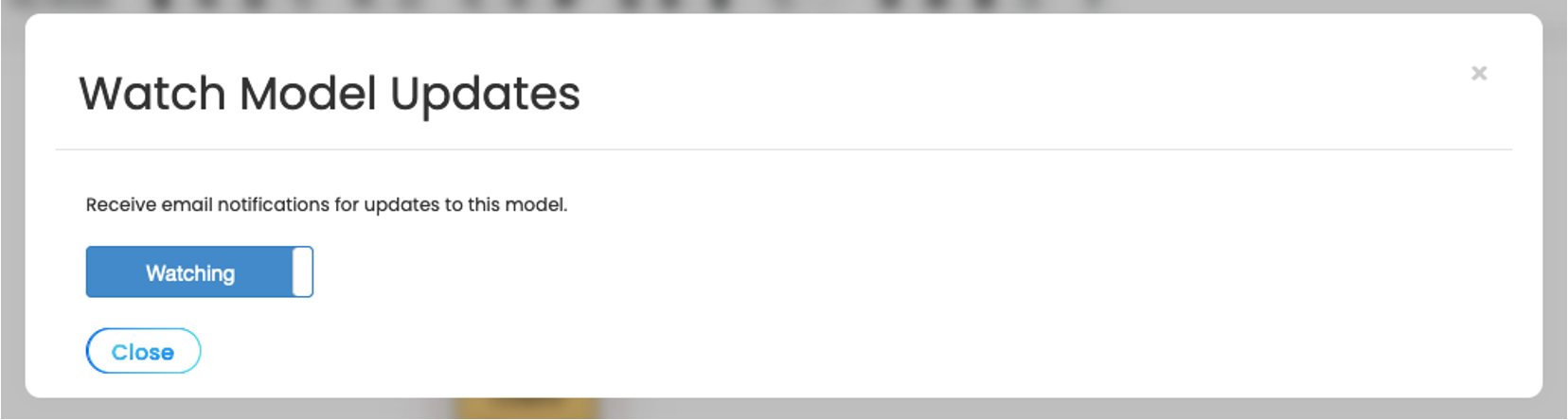

Watchers

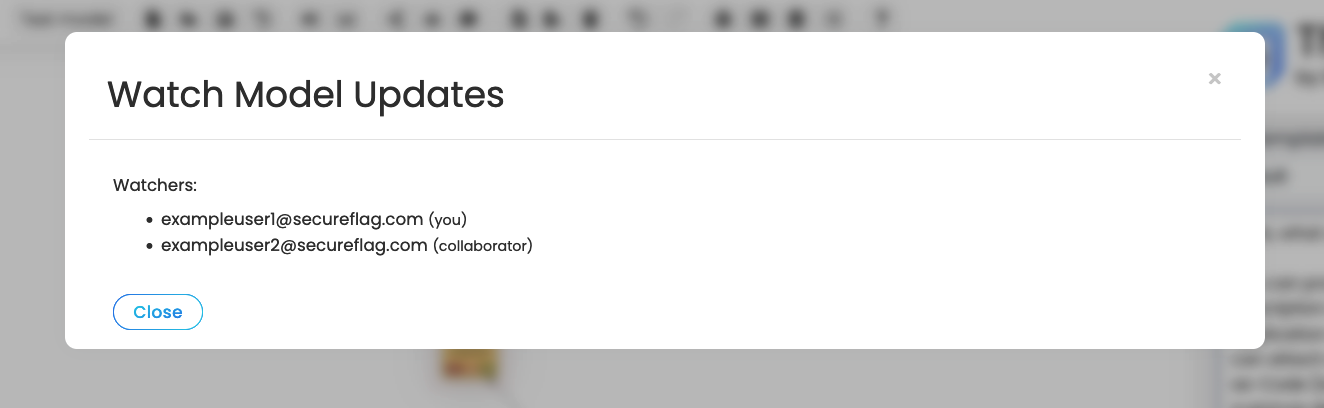

The model’s owner and all collaborators are automatically added as watchers and will receive email updates about changes. If you click on the List Watchers icon ,  it will open a modal window where the users watching the model are listed.

Note: Watchers will receive an email notification if there’s a change to the model, but only if they haven’t been notified in the past hour, ensuring they aren’t alerted for every minor edit.

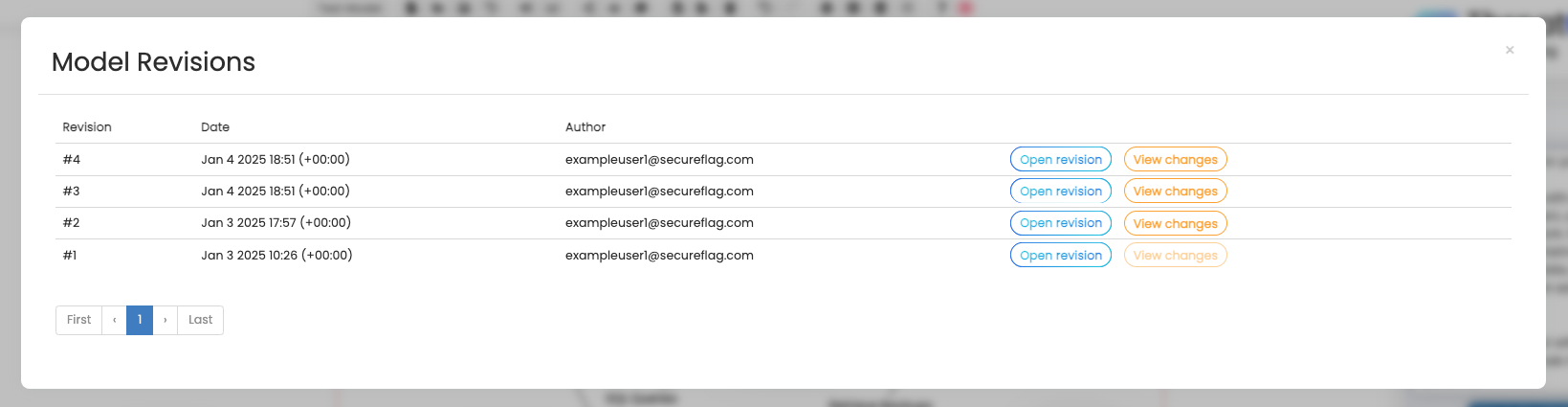

Model Revisions

Once a model is saved, you can view a history of revisions for a model by clicking the Revisions icon

1. To open a revision, click Open Revision.
2. ThreatCanvas automatically generates a summary of changes from the previous version. Click View Changes to see a concise summary of updates.

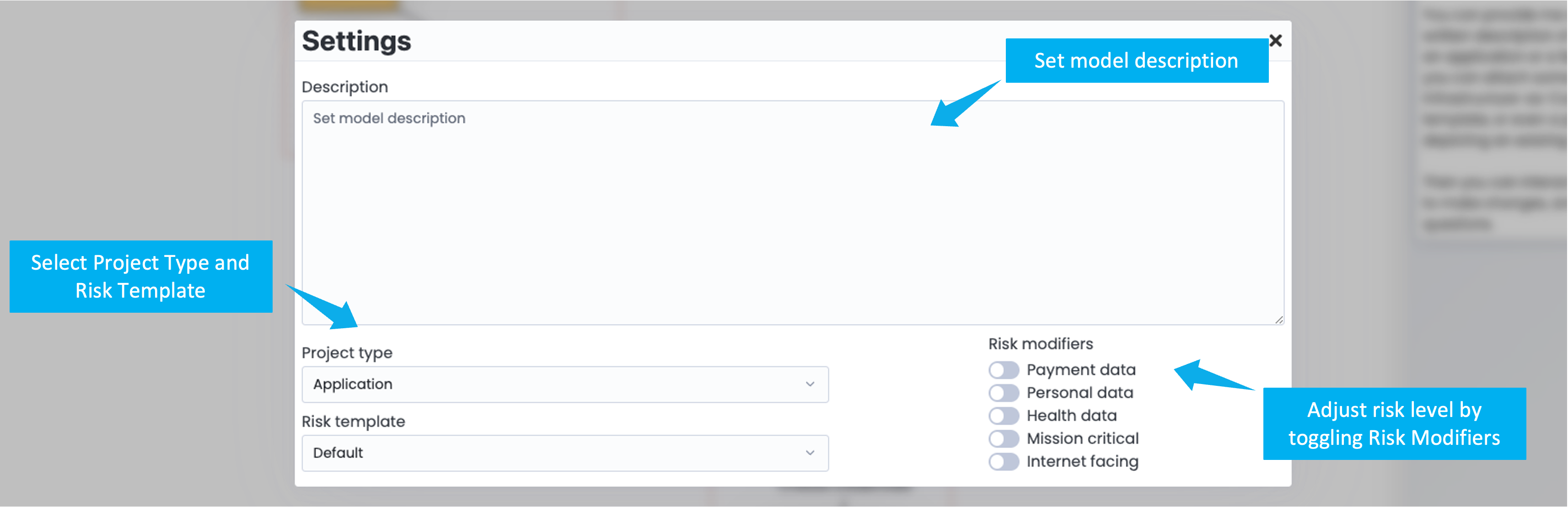

Model Settings

You can edit the threat model’s configuration by clicking the Settings icon

1. Model Description: Enter a description for your model in the Description text box.
2. Project Type: Select the appropriate project type—Application, System, or Feature.
3. Risk Template:  Choose a Risk Template for your model from the Risk Template dropdown menu.
4. Risk Modifiers: Adjust the overall risk level by toggling modifiers that represent properties of the system you are modeling:
1. Payment Data: the feature/system processes personal information (PII).
2. Personal Data:  the feature/system processes payment information.
3. Health Data: the feature/system processes health data.
4. Mission Critical: the availability of the feature/system is considered mission critical.
5. Internet-facing: the feature/system is exposed to the internet.

Model Summary and Sharing to Jira or Azure Boards

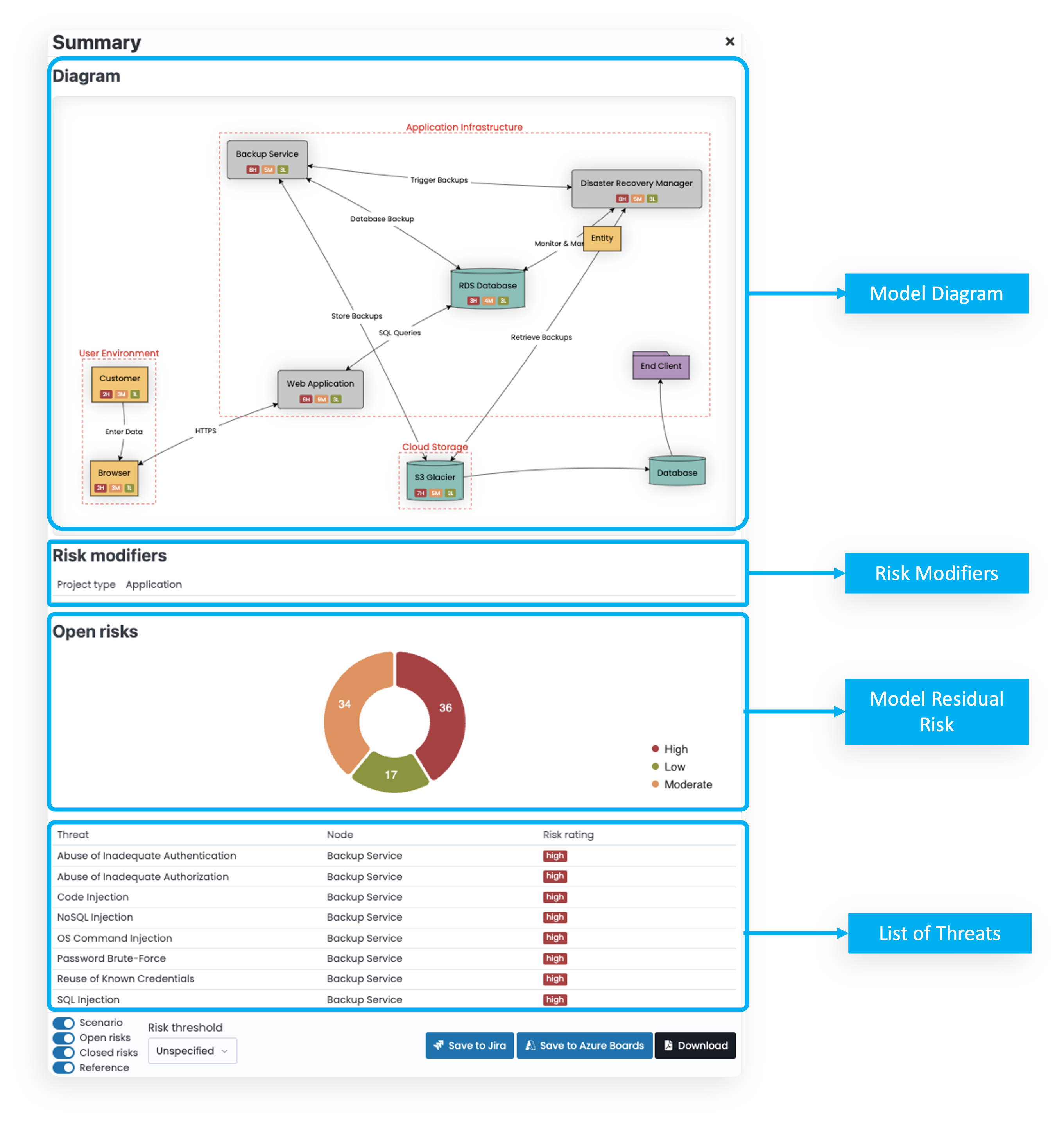

Click the Summary icon  to access the model’s report. The summary includes:

1. The model’s diagram
2. A list of all Open and Mitigated Risks
3. A breakdown of risks by individual node
4. A Reference with a description of each Threat and Control included in the model.

Residual Risk

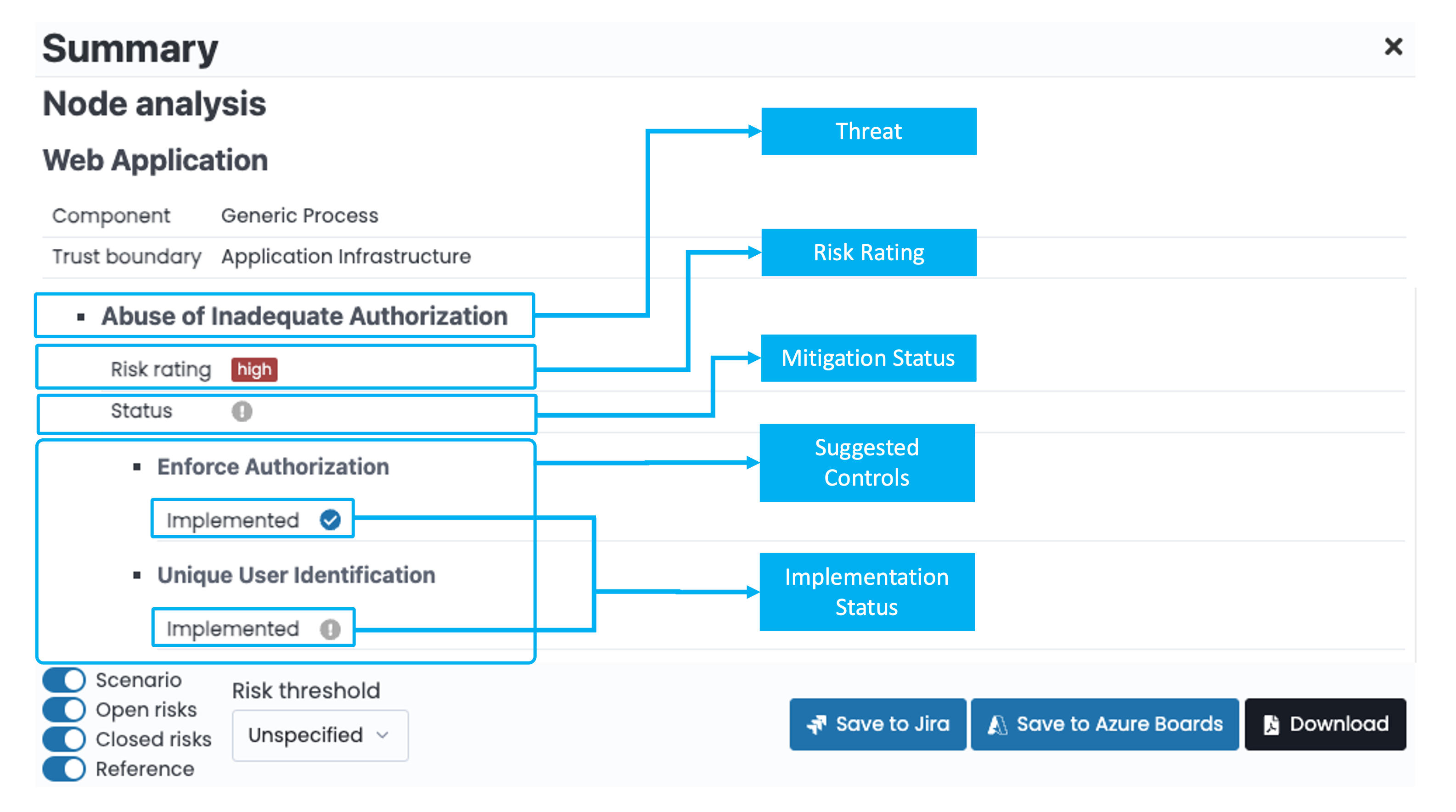

Node Analysis

1. Component and Trust Boundary
2. Risk Rating and Mitigation Status
3. Applicable controls with implementation status

Display Options

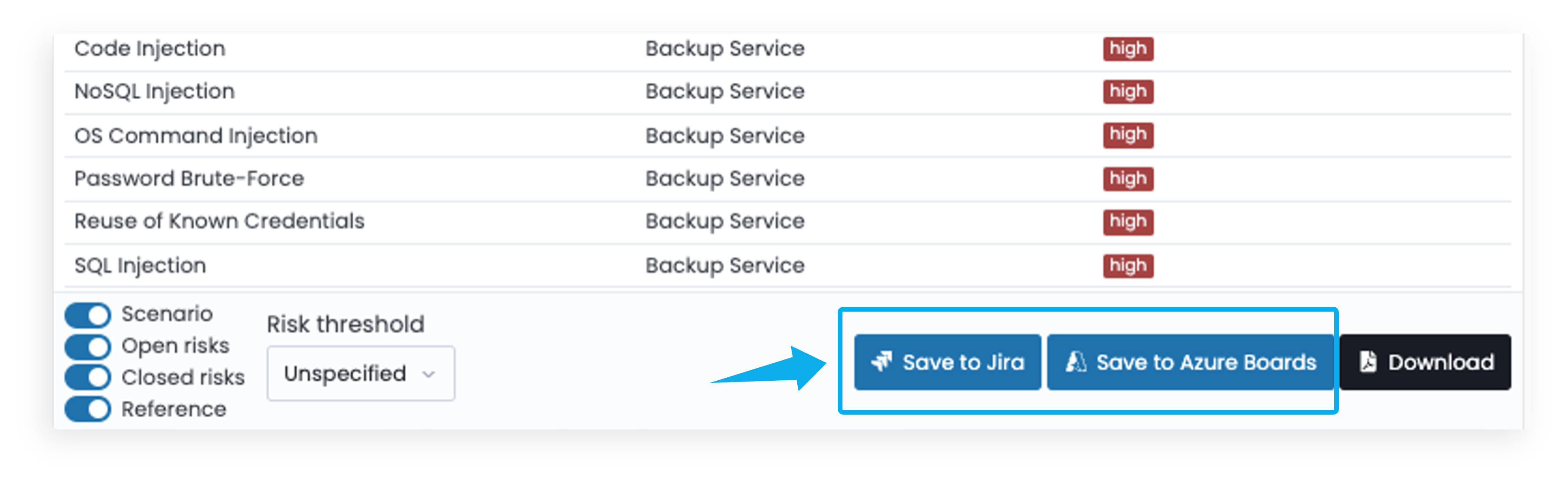

Save to Jira and Azure Boards

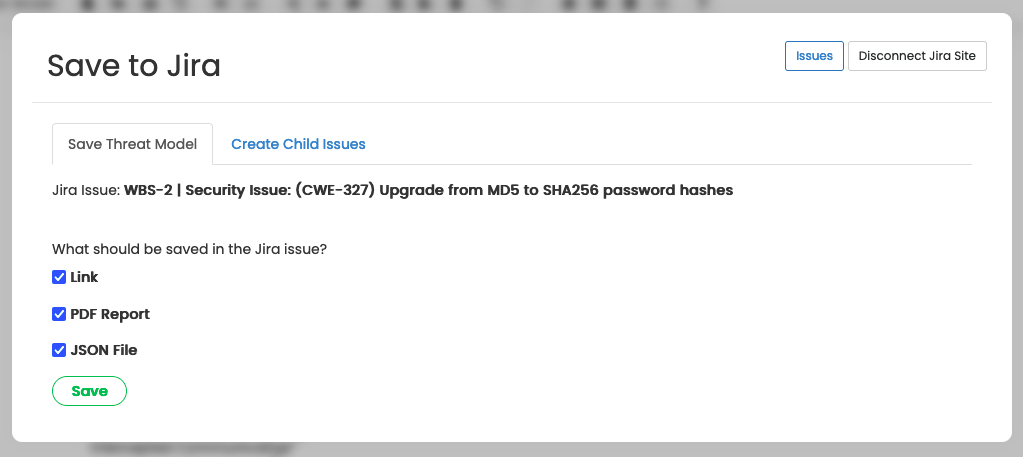

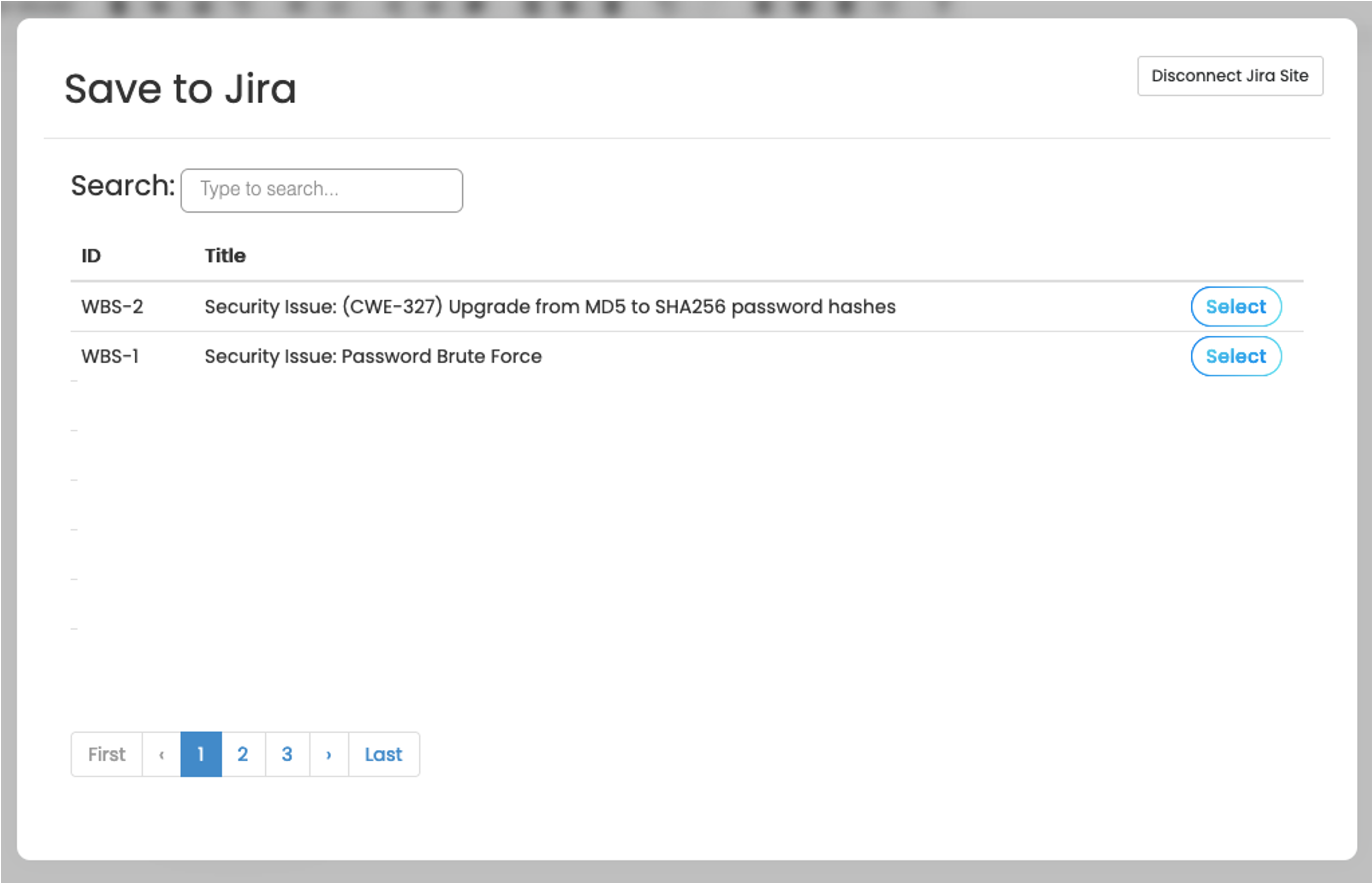

Save to Jira

1. Link
2. PDF Report
3. JSON File

Note: To include a link to the Jira issue, the Threat Model needs to be saved in the user’s library.

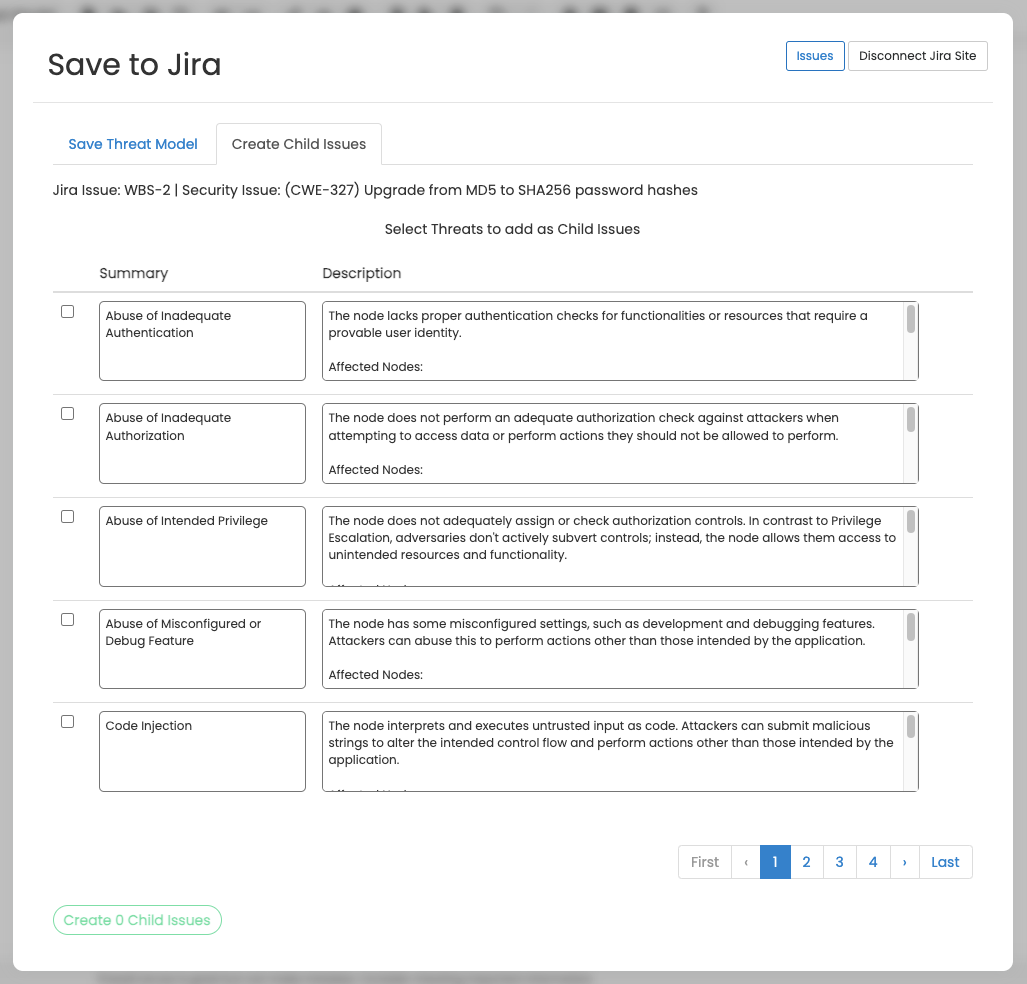

1. Click the Create Child Issue tab to view a list of open threats.
2. Use the checkboxes to select the threats you want to create as child issues under the main Jira issue.
3. Optionally edit the Summary text to set the title of the child issue and the Description as needed. The description includes:
1. Details about the threat
2. Affected nodes within the model
3. Risk rating
4. Rationale and controls associated with each node

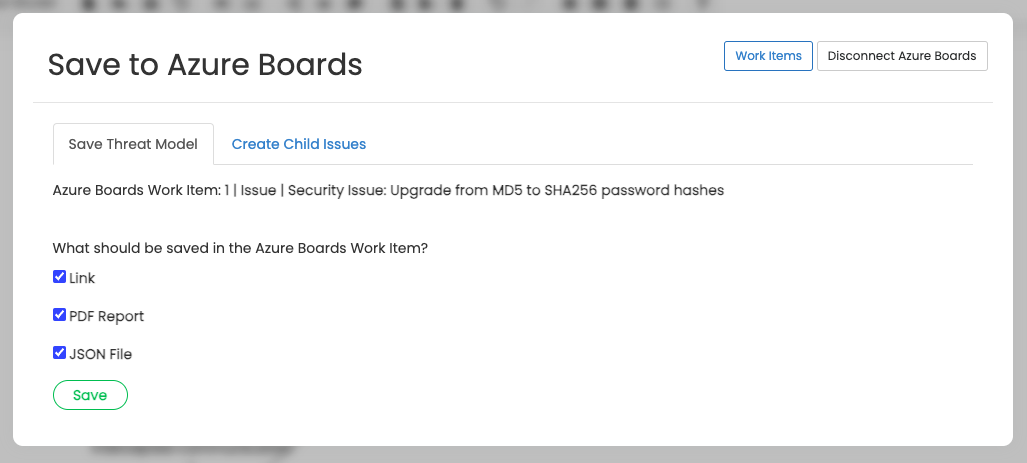

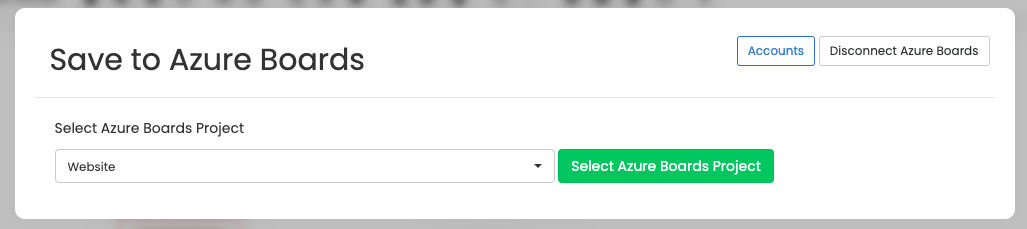

Save to Azure DevOps Boards

1. A list of Work Items will be displayed.
2. Toggle the Work Items w/o Parent switch to Show All to view all issues and tasks.
3. From the list, click the Select button to save your model to the desired Work Item.

1. Link
2. PDF Report
3. JSON File

Note: to include a Link in the Azure Boards Work Item, the Threat Model needs to be saved in the user’s library.

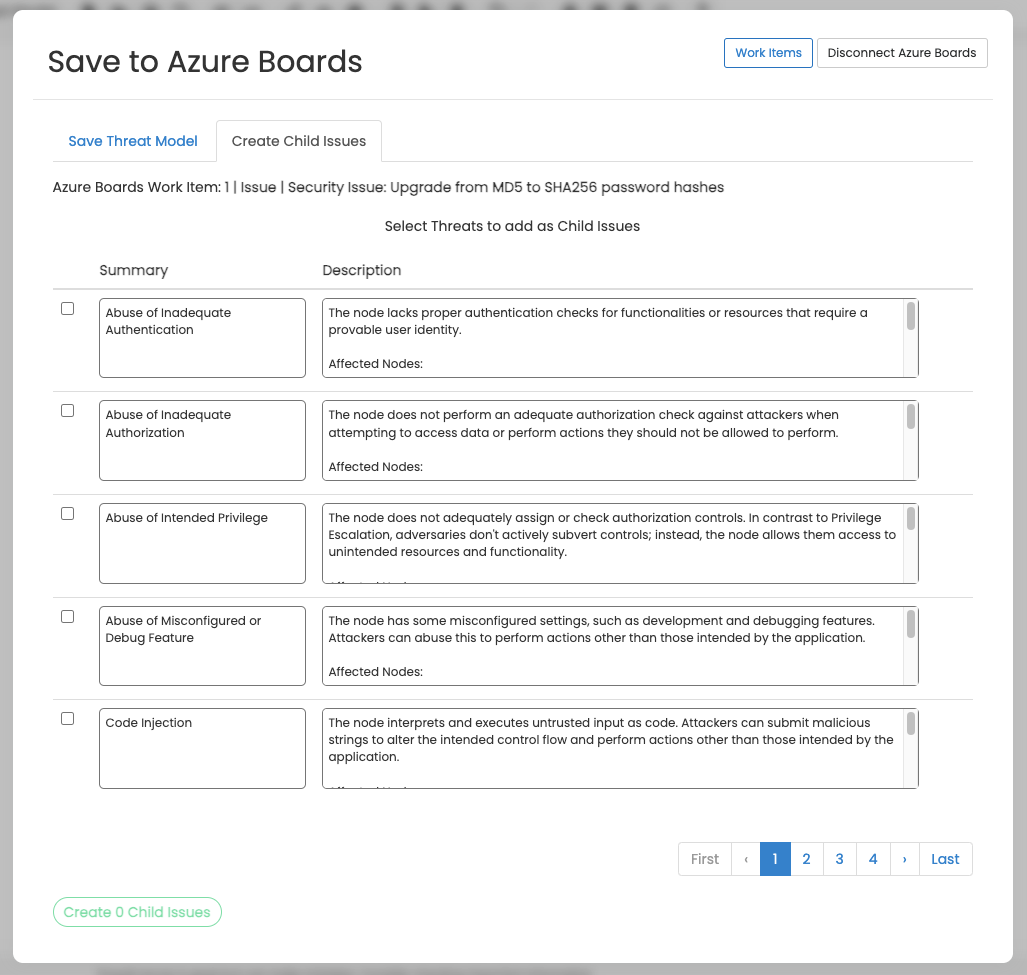

1. Click the Create Child Issue tab to view a list of open threats.
2. Use the checkboxes to select the threats you want to create as child issues under the main Azure Work Item.
3. Edit the Summary text to set the title of the child issue.
4. Modify the Description as needed. The description includes:
1. Details about the threat
2. Affected nodes within the model
3. Risk rating
4. Rationale and controls associated with each node

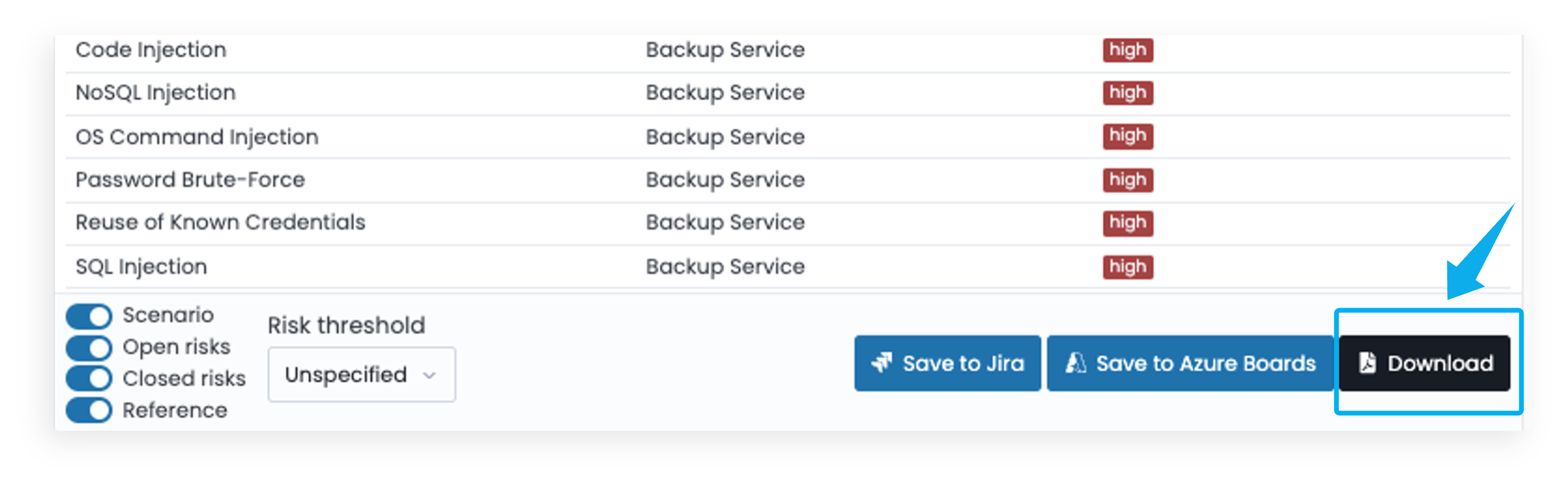

Generate a PDF Report

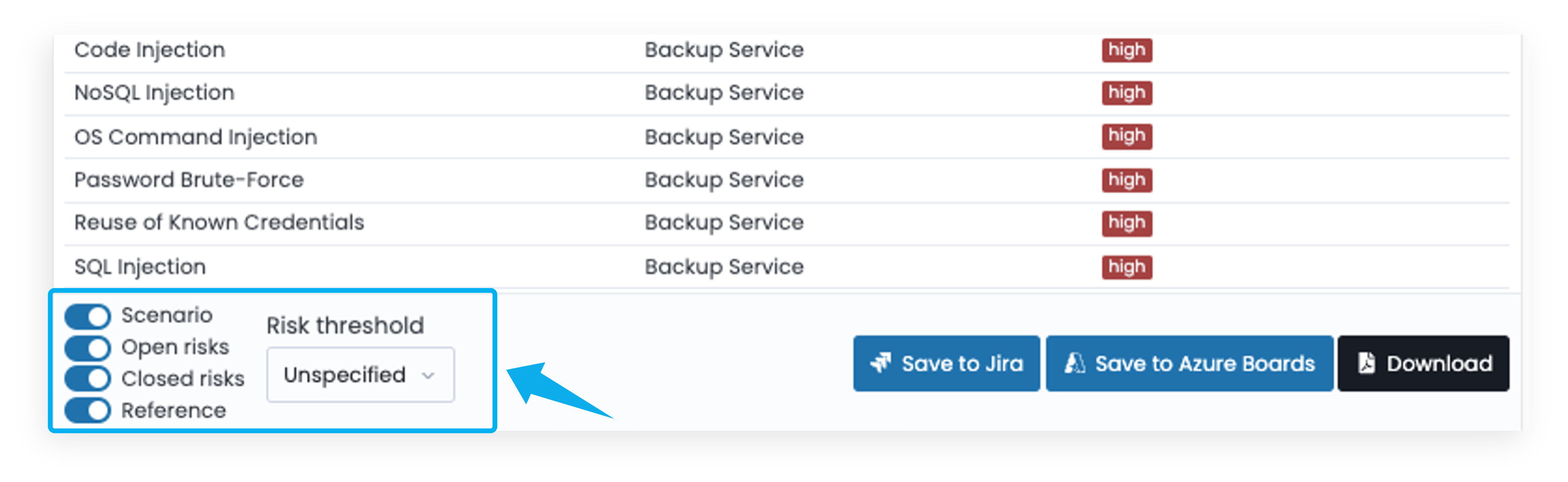

1. Four toggle switches for different sections of the report: Scenarios, Open Risks, Closed Risks, and References.
2. A Risk Threshold dropdown to filter threats based on their risk level, with options for High, Moderate, Low, and Unspecified.

1. Toggle on to include their respective sections in the report.
2. Toggle off to exclude those sections from the PDF report.
3. Optionally, use the Risk Threshold dropdown to filter risks, ensuring the report only includes risks matching the selected level.

Accessing ThreatCanvas Through Jira and Azure DevOps

1. Install ThreatCanvas for Jira Cloud.
2. Install ThreatCanvas for Jira Data Center.
3. Install ThreatCanvas for Azure DevOps Boards.


Accessing through Jira

1. Navigate to your Jira dashboard.
2. Head over to a project with tasks/issues.
3. Click on a task/issue, and the ThreatCanvas plugin will pop up on the right.
4. Select the Launch button to open ThreatCanvas, and use the description of the task/issue as your first prompt to create the model.

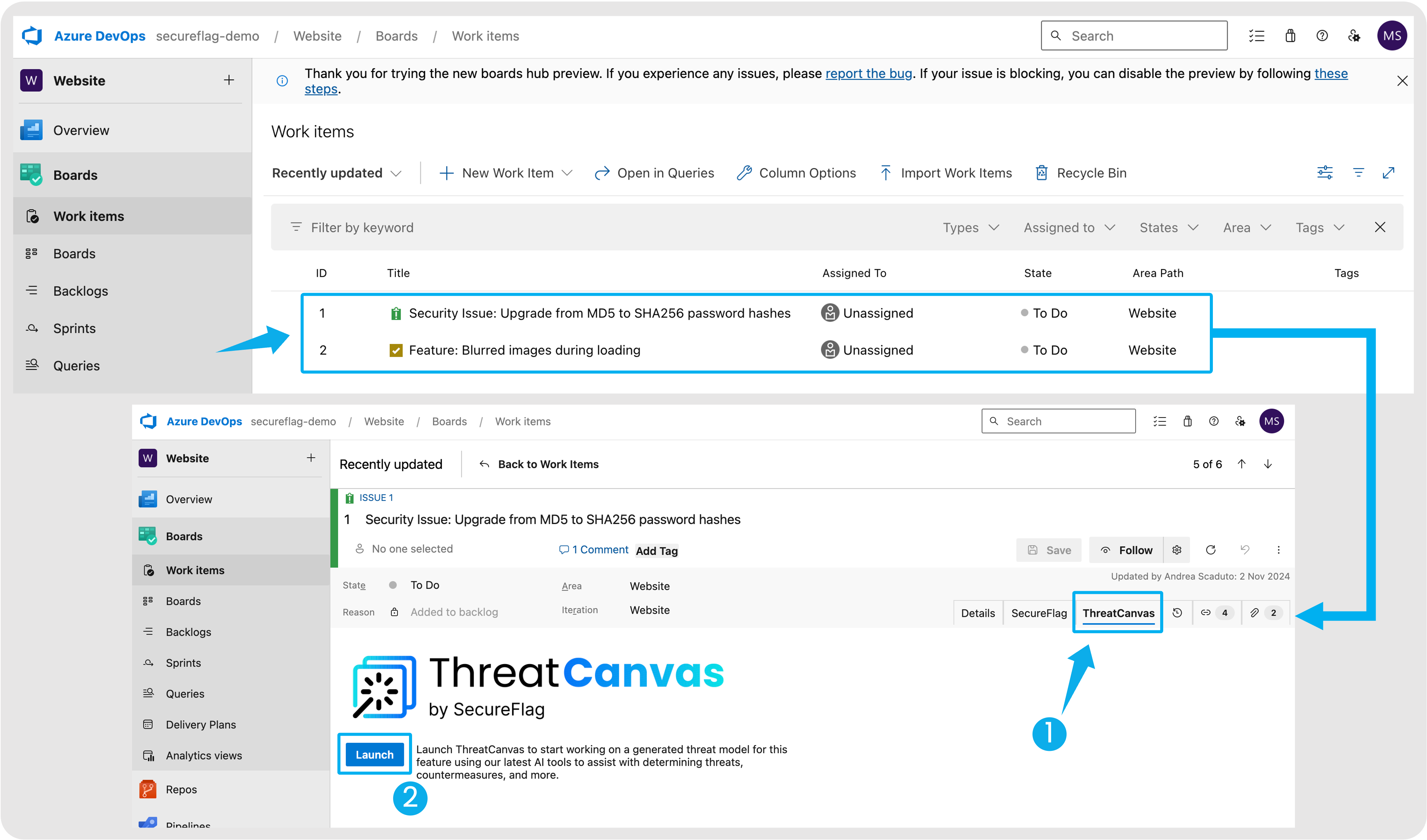

Accessing through Azure DevOps Boards

1. Navigate to the Azure DevOps dashboard.
2. Select Boards from the left-hand menu.
3. Click Work Items and locate the desired task in the Work Items column.
4. Select the task, go to the ThreatCanvas tab, and click the Launch button to open ThreatCanvas.

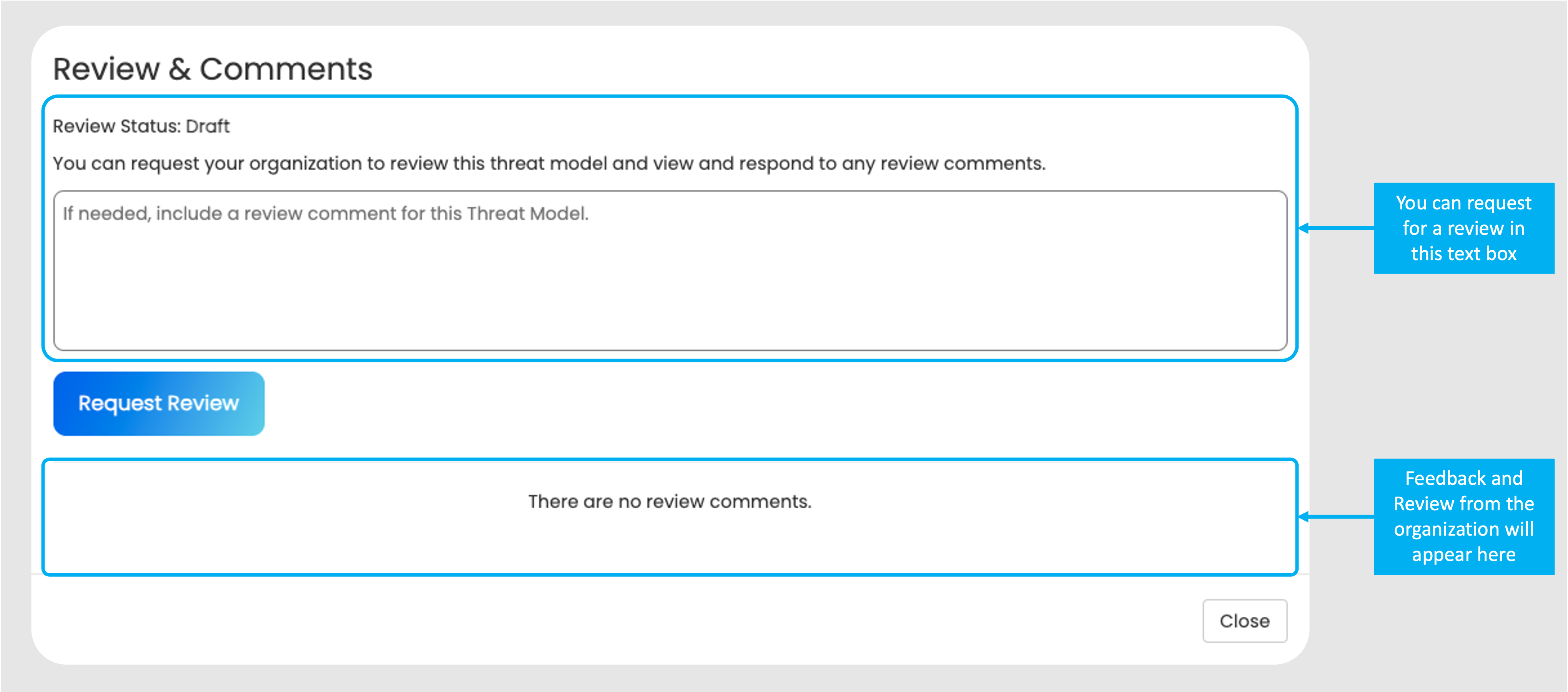

Review and Comments

After generating a threat model and performing your analysis of threats and controls, you can request a review from threat modeling experts in your organization by clicking the Review icon

1. Draft your request in the provided text box.
2. Submit your request by clicking the Request Review button.
3. Feedback and comments from your organization will appear below.

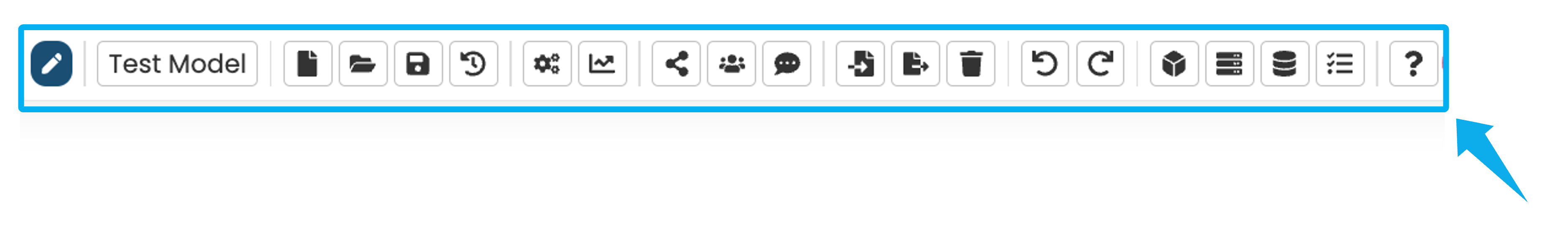

Navigating the Toolbar

1. New Model  : Create a new model.
2. My Models  : See a list of models created by you or shared with you as a collaborator.

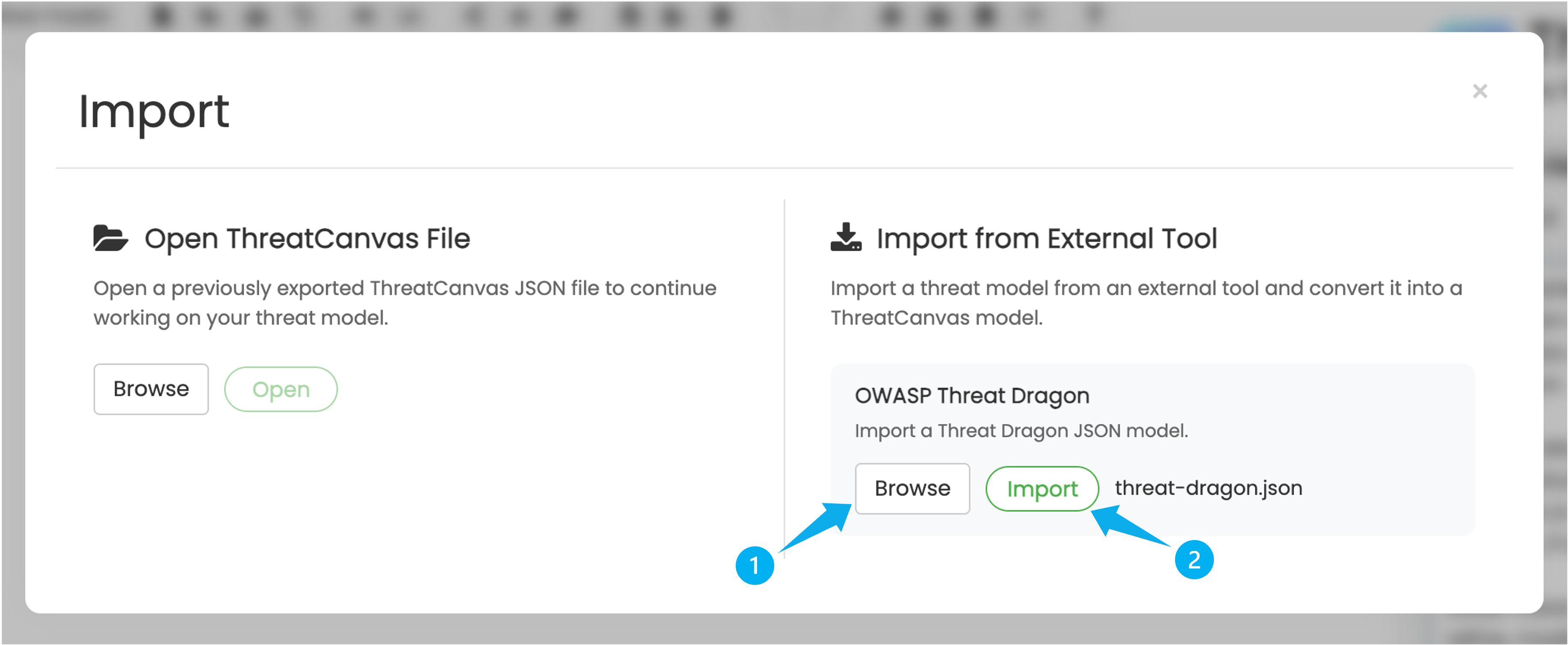

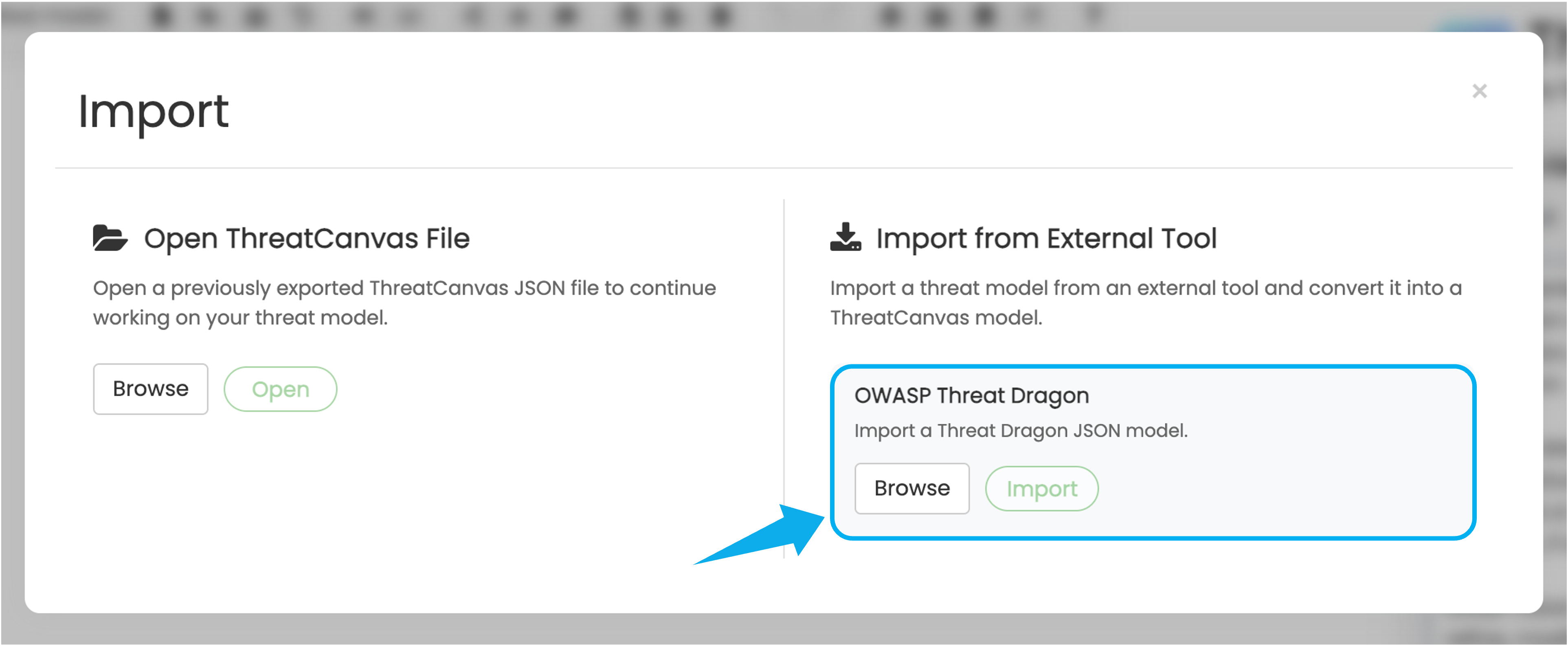

3. Import JSON Model  : load a model importing a JSON file.
4. Export JSON Model  : export a model as a JSON file.
5. Delete  :  Deletes the current model.
6. Undo  : Undo the last change made.
7. Redo  : Redo the last change made.

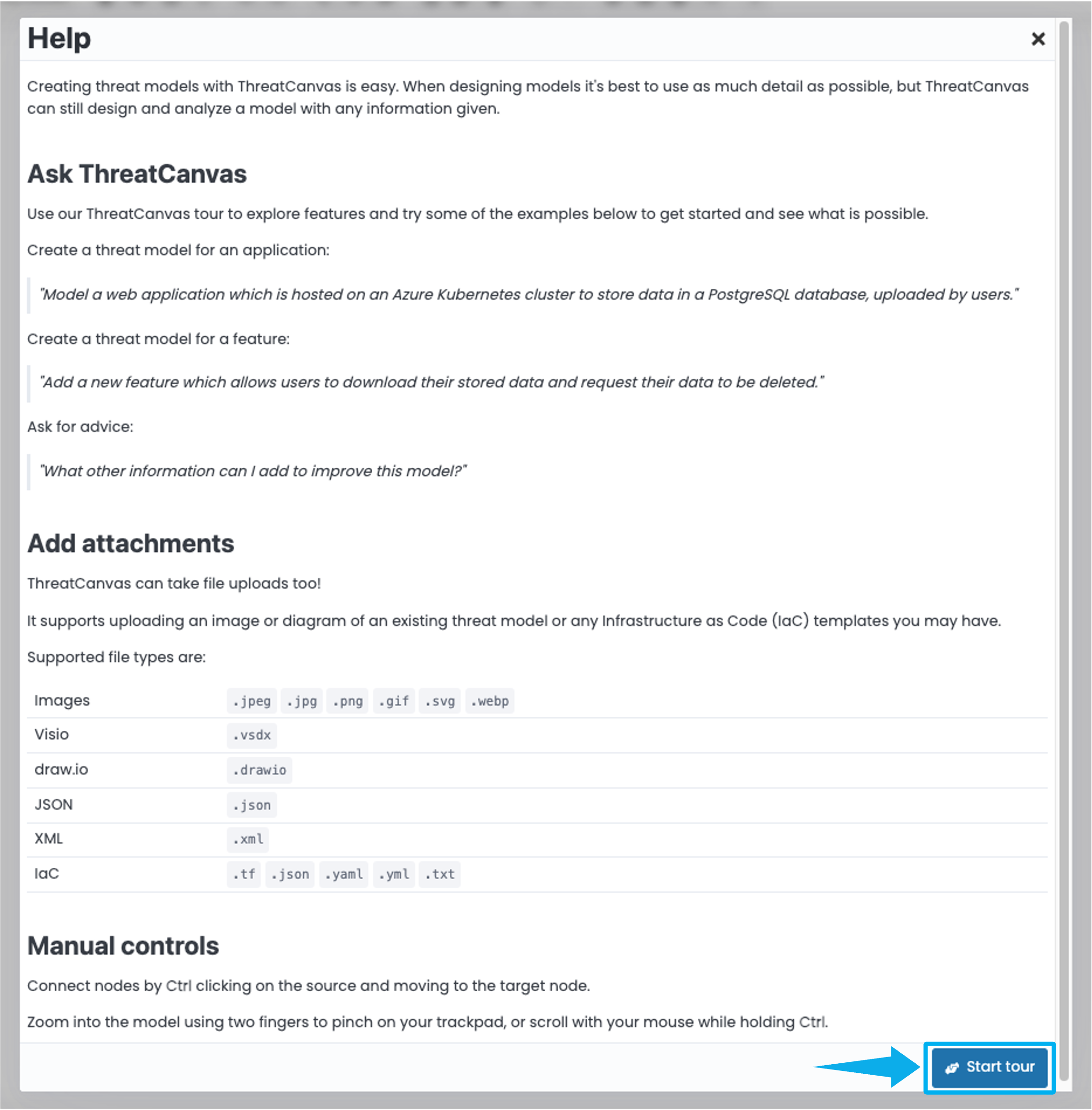

Help

Click the Help icon  if you need assistance while using ThreatCanvas.

1. Click the Start Tour button to begin a guided tour that walks you through ThreatCanvas.
